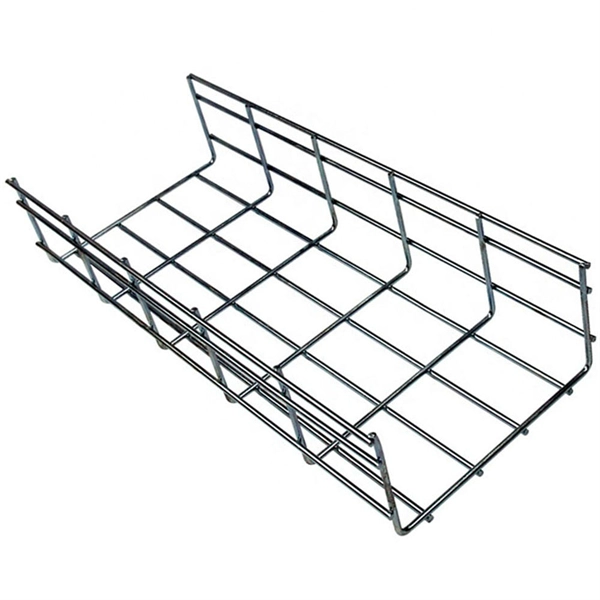

Proper installation of single-core cables in trays requires careful attention to arrangement, spacing, bonding, and mechanical support to ensure balanced currents, prevent overheating, and maintain safety.

Cable Arrangement and Phase Considerations

When laying three single-core cables to form a three-phase circuit, the trefoil arrangement—where cable centers form an equilateral triangle—is preferred for high-current applications. This configuration balances the mutual reactances between cables, resulting in balanced currents in metallic sheaths or screens and minimizing excessive heating. Flat or triangular arrangements can lead to unbalanced sheath currents, potentially causing overheating and reduced cable lifespan . For multiple cables per phase, phase sequence and correct arrangement are critical to ensure equal current distribution. Improper arrangement can cause imbalanced currents, leading to localized overheating, insulation damage, and reduced service life .

Ampacity and Electrical Ratings

Single-core cables installed in trays must follow ampacity tables specific to cable tray installations (e.g., Article 392 in the NEC for U.S. installations). Free-air ampacity tables are generally not applicable for tray installations, as the heat dissipation differs from open-air conditions . The correct ampacity ensures that the cables do not exceed their thermal limits during operation.

Mechanical Support and Restraint

Cables must be mechanically restrained to prevent movement due to electromagnetic forces. Recommended practices include:

• Clamping every 3 meters for trefoil arrangements, with cores bound together using glass/polyester tape every 1–2 meters.
• Allowing sag between clamps to accommodate thermal expansion and contraction.
• Avoiding over-restraining, which can damage insulation during load cycling . For ladder-type trays, this restraint is essential to prevent repulsion forces between high-current single-core cables, calculated as F = 200 × kA × kA / core separation (mm) in N/m .

Bonding and Sheath Considerations

Single-core cables often have metallic sheaths or armour that can carry induced currents. Bonding methods affect both safety and ampacity:

• Single-point bonding maximizes current rating but may result in high sheath voltages.
• Mid-point bonding reduces end voltages while maintaining moderate current rating.
• Bonding at both ends eliminates sheath voltage but can reduce the allowable current rating . Proper bonding prevents dangerous voltages and excessive heating in the metallic layers.

Summary

To safely and efficiently lay single-core cables in trays:

1. Use trefoil arrangements for three-phase circuits to balance currents.
2. Follow cable tray-specific ampacity tables.
3. Ensure mechanical restraint with appropriate spacing and binding.
4. Apply correct bonding methods for metallic sheaths to control induced voltages.
5. Maintain proper phase sequence and arrangement for multiple parallel cables to prevent overheating and ensure long-term reliability . These practices collectively ensure electrical safety, thermal management, and mechanical stability in high-current single-core cable installations.
