Fiber optic fusion splice boxes in wind turbines provide vibration-resistant, modular, and high-density connections for reliable data and signal transmission under extreme conditions.

Purpose and Function

Fiber optic fusion splice boxes are used inside wind turbine towers to join and protect fiber optic cables, ensuring continuous optical paths for control, monitoring, and communication systems. They are essential for repairing damaged cables, extending networks, or adding branches within the turbine infrastructure, where environmental stress and vibrations are significant .

Types of Splice Boxes

• VarioConnect and SlimConnect Systems: These are modular or fixed splice boxes designed specifically for wind turbines. They support up to 72 fibers modularly or 96 fibers in fixed configurations, optimizing limited space inside turbine control cabinets .
• Offshore-Grade Splice Boxes: Stainless steel enclosures with IP67 ratings provide protection against moisture, dust, and saltwater, suitable for offshore turbines .
• Hazardous Area Junction Boxes: Ex-certified boxes with stainless steel frames and protective covers ensure safe operation in potentially explosive or harsh environments .

Key Features

• Vibration Resistance: DIAMOND E2000 connectors and similar technologies prevent loosening due to turbine movement, maintaining reliable connections under constant vibration .
• Modular Design: Pull-out modules and rear cable management allow easy maintenance and scalability, supporting ring topology networks connecting multiple turbines .
• High Fiber Density: Compact designs allow efficient use of limited space, supporting up to 288 fibers in larger technical rooms or control cabinets .
• Maintenance-Friendly: Extendable splice boxes enable servicing during operation without system failure, crucial given the limited maintenance windows in wind turbines .

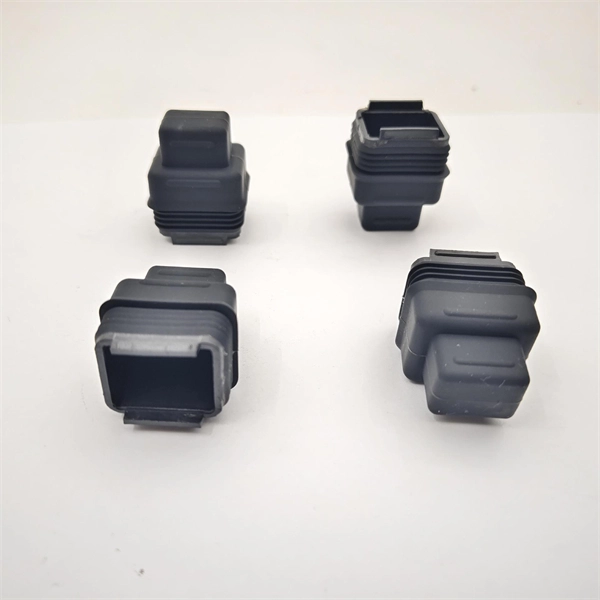

• Protection Features: Integrated laser protection flaps, dust caps, and earthing concepts enhance safety and reduce contamination risks .

Installation and Splicing Process

• Fusion Splicing: Involves melting fiber ends with an electric arc to create a continuous optical path. This method is preferred for permanent, low-loss connections .
• Preparation Steps: Strip protective coatings, clean fibers with lint-free wipes and isopropyl alcohol, cleave ends precisely, and inspect for defects using a microscope .
• Mechanical Splicing: An alternative for temporary or emergency connections, aligning fibers with a clamp or connector .

Considerations for Wind Turbines

• Environmental Stress: Turbine towers experience constant vibration, temperature fluctuations, and dust, requiring robust splice box designs .
• Space Constraints: Compact, modular boxes maximize fiber capacity while fitting into limited control cabinet space .
• Future Scalability: Modular systems allow adding fibers or upgrading networks without major downtime . Fiber optic fusion splice boxes are therefore critical components for reliable communication and monitoring in wind turbines, combining high-density fiber management, vibration resistance, and maintenance-friendly design to ensure long-term operational stability .
